Product description

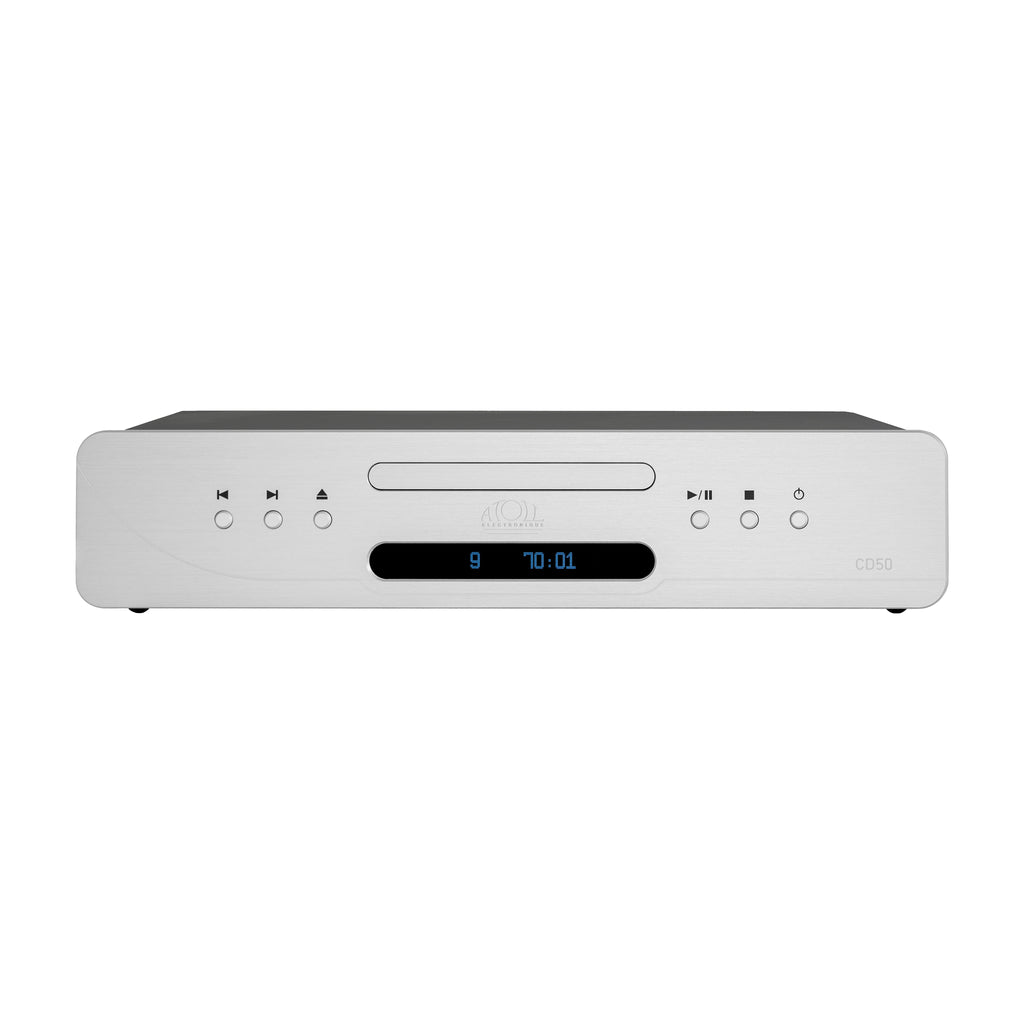

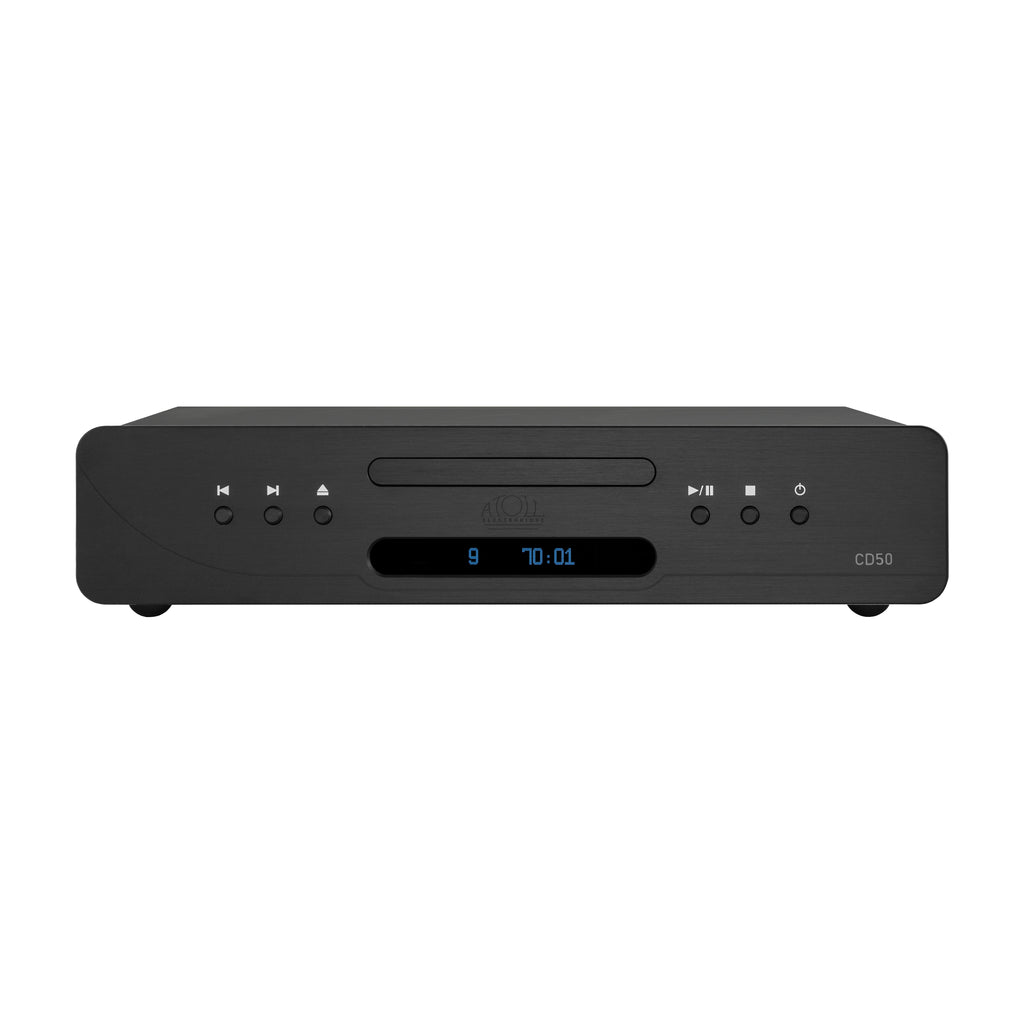

The Atoll CD50 Evolution (CD50 Evo) is an entry-level audiophile CD player designed and manufactured in Brecey, France, by Atoll Électronique. Built as an upgrade over the previous Signature series, the "Evo" line redesigns the power delivery, conversion stages, and mechanical chassis for improved detail and warmth.
Key Technical Specifications
-
CD Drive: Central TEAC drive custom-built for pure audio CD playback (compatible with CD, CD-R, CD-RW, MP3, and WMA-AAC).
- DAC: Texas Instruments / Burr-Brown PCM1791A (24-bit / 192 kHz).
- Output Stages: Discrete differential audio output stages biased in Class A.
Specifications
| Feature | Specification |
| Drive Mechanism | Dedicated TEAC pure audio CD mechanism (latest gen) |
| DAC Chip | |
| Output Stage | Differential discrete components biased in Class-A |
| Power Supply | Linear transformers (30 VA for digital, 4.6 VA for audio, 1.6 VA low-power) |
| Total Capacitance | 16,700 µF |
| Signal-to-Noise / Dynamic Range | 113 dB |
| Standard Outputs | 1 RCA Line, 1 Coaxial Digital, 1 Optical Toslink, 12V Trigger |
| Dimensions / Weight | 440 × 280 × 95 mm / 6 kg |
