Product description
The Eversolo Play series is aimed squarely at anyone who wants a minimal, high-performing "all-in-one" hub. If you don't own physical media, the base Play saves money and footprint. If you have a legacy CD collection or want an effortless way to digitize discs, the Play CD offers tremendous value for the small price jump.
Key Technical Specifications & Features
-
Built-in Power Amp: Features a Class D amplifier delivering 60W per channel at 8Ω (or 110W at 4Ω) using PurePath Ultra HD technology. This easily drives bookshelf speakers and efficient tower speakers.
- DAC & Resolution: Built around an AKM AK4493SEQ DAC chip with Velvet Sound technology. Supports resolution decoding up to PCM 32-bit/768kHz and native DSD512.

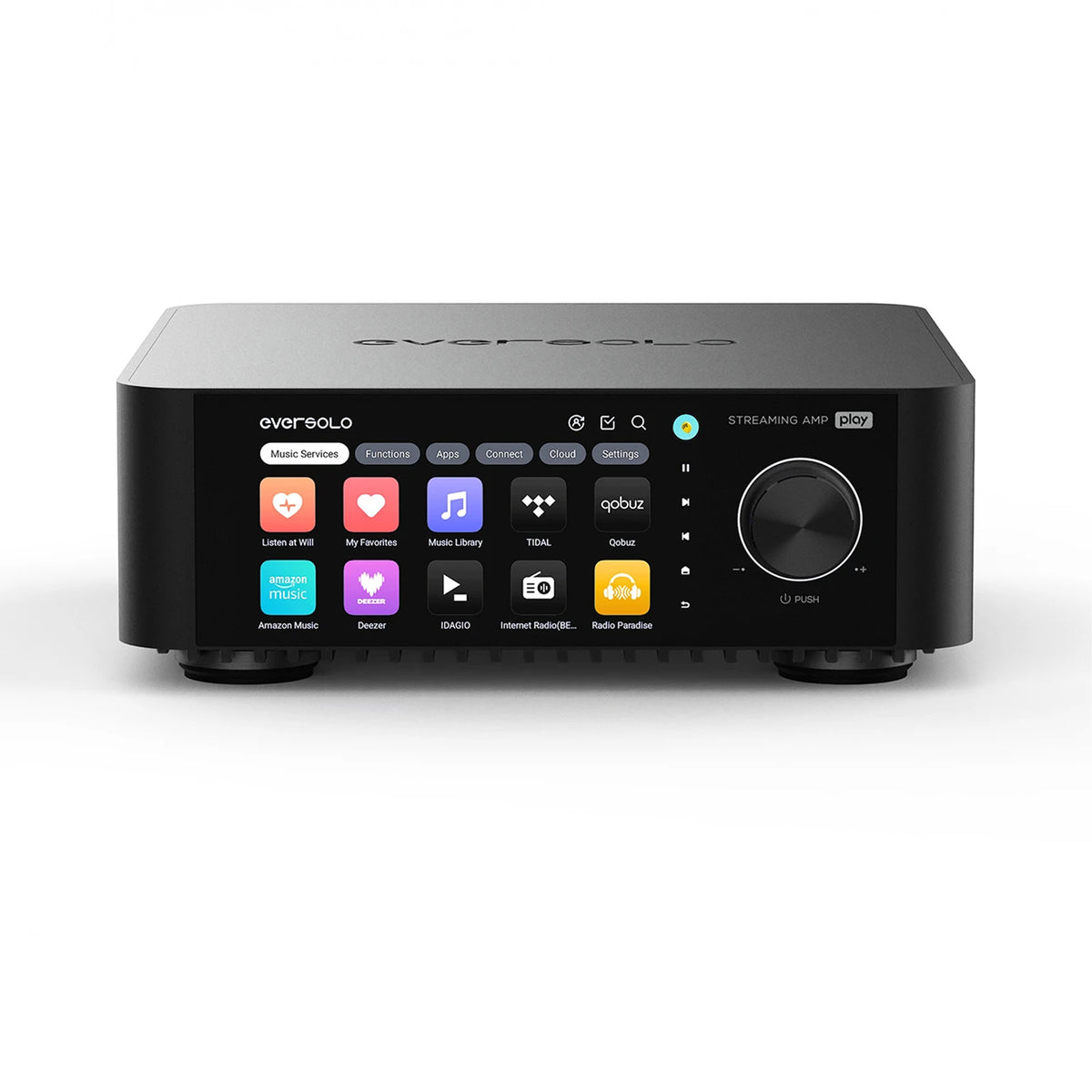

- Interface & Display: Front-panel 5.5-inch color LCD touchscreen paired with an oversized volume knob surrounded by a customizable RGB light ring. Features dynamic vintage VU meter displays.
- Software Platform: Powered by Eversolo’s customized EOS (Eversolo Original Audio Engine) built on Android, bypassing system SRC (sample-rate conversion) for bit-perfect output across all apps.
- Streaming Ecosystem: Native app integration for Tidal, Qobuz, Amazon Music, and Apple Music. Supports Roon Ready, Tidal Connect, Qobuz Connect, AirPlay, and UPnP/DLNA.
- DSP & Tuning: Includes automatic room correction (using your phone's microphone), a 10-band Parametric EQ, a 15-band Graphic EQ, and advanced smart bass management for subwoofers.
The CD Functionality (Play CD Exclusive)
The Play CD Edition integrates a Hitachi-LG optical drive inside a vibration-dampened chassis. Beyond real-time audio playback, it acts as a CD Ripper. When you insert a CD, it fetches metadata automatically and allows you to rip tracks in bit-perfect FLAC or WAV formats directly to the internal 32GB memory, an attached USB drive, or a network NAS drive.
Specifications
| Specification | Details |
| Display | 5.5" LCD Touchscreen (with dynamic VU meters) |
| Chassis Material | Aluminum alloy (Black or Silver finish) |
| Internal System | Custom Android (EOS Engine), 4GB DDR4 RAM + 32GB eMMC Storage |
| Dimensions & Weight | 230 mm x 230 mm x 75 mm (9.05" x 9.05" x 2.95") • ~2.6 kg (5.7 lbs) |
| Amplification Type & Power | Class D • 60W RMS per channel into 8Ω / 110W RMS per channel into 4Ω |
| THD (Distortion) | <0.0037% (20Hz–20kHz @ 5W / 1kHz) |
| Signal-to-Noise Ratio | >109 dB (@ A-weight, 4Ω 110W) |
| Frequency Response | 20Hz–20kHz (±0.25dB), 20Hz–40kHz (-3dB) |
| Damping Factor | >107 |
| DAC Chipset | AKM AK4493SEQ |
| Decoding Formats | Up to PCM 32-bit/768kHz, Native DSD512 |
| Supported Audio Formats | DSD (DSF, DFF, SACD ISO), FLAC, WAV, AIF, AIFF, APE, AAC, MP3, CUE, NRG |
| Audio Inputs Analog | RCA Line In (up to 2VRMS), Phono Input (MM / MC support) |

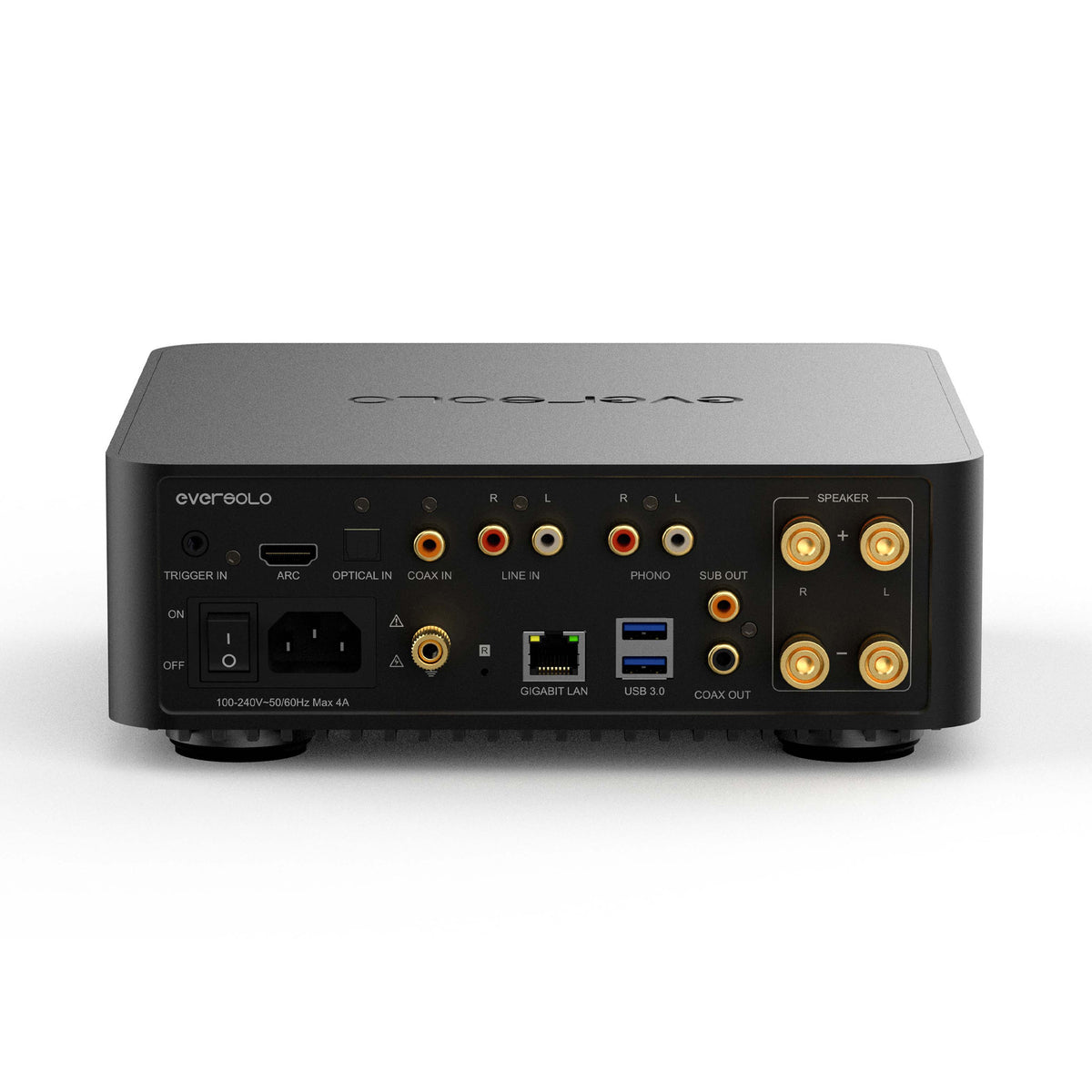

| Digital Inputs | HDMI eARC/ARC, Optical (Toslink), Coaxial (RCA) |
| Wireless / Network | Dual-band Wi-Fi (2.4GHz + 5GHz), Gigabit Ethernet (RJ-45), Bluetooth 5.3 |
| Speaker Terminals | Binding posts (compatible with banana plugs, spades, or bare wire) |
| Digital Outputs | USB Audio Out (up to DSD512, PCM 32/768), Coaxial Out (up to PCM 24/192 & DoP64) |
| Subwoofer Out | Dedicated RCA Sub Out with smart crossover control (40 Hz – 500 Hz) |
| Streaming Protocols | Roon Ready, TIDAL Connect, Qobuz Connect, AirPlay, DLNA/UPnP |
| Integrated Apps | TIDAL, Qobuz, Amazon Music, HIGHRESAUDIO, Deezer, TuneIn, WebDAV |
| Audio Processing | Built-in Room Correction, Multi-band Parametric EQ (PEQ) & Graphic EQ |
| Storage Expansion | 2x USB 3.0 OTG ports for external hard drives / flash storage |
| Play CD Edition | Adds a top/front-loading slot/tray mechanism for direct CD playback |
