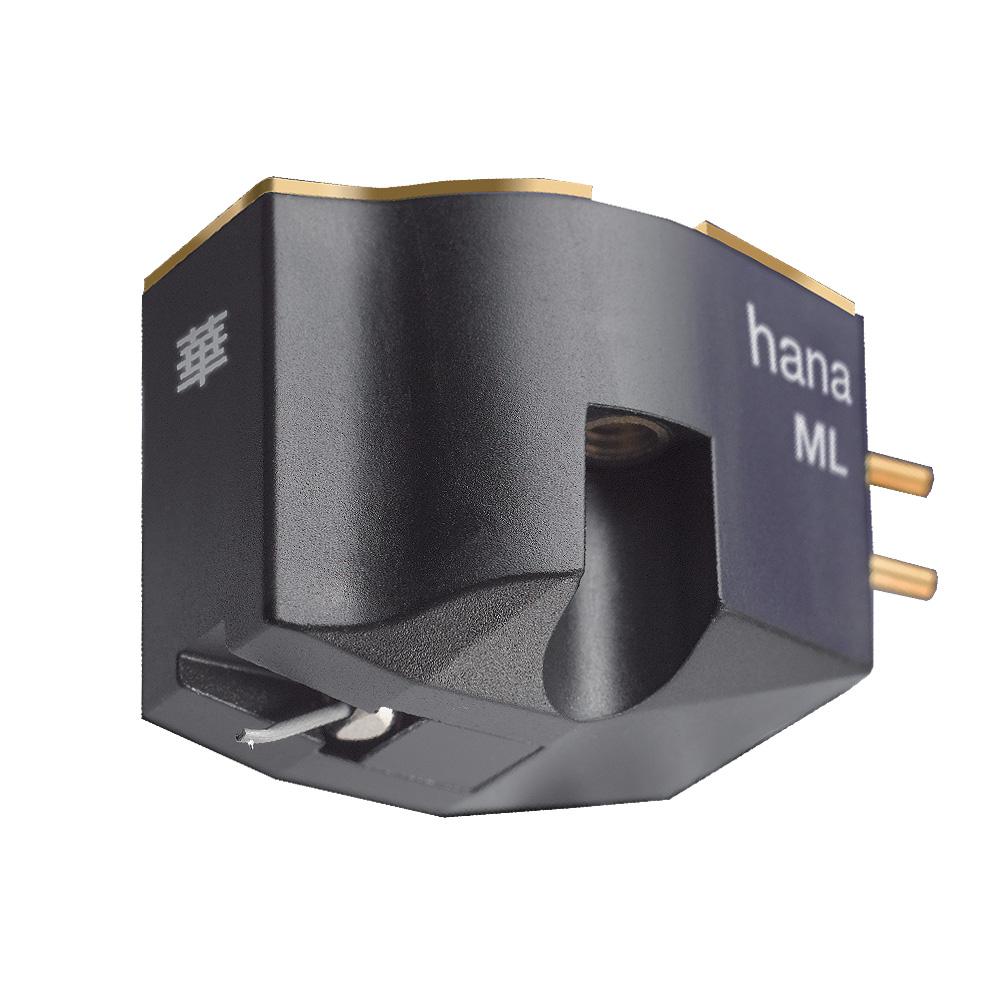

Hana MC ML

Hana MC ML

$1,480.00

Cartridge

The Hana ML is a highly acclaimed, mid-tier low-output moving coil (MC) phono cartridge manufactured in Japan by Excel Sound Corporation. Sitting in Hana's M Series line, it is widely regarded in the audiophile community as one of the best price-to-performance cartridges.

Ships within 15 days or less

Informations

Product description

The Hana ML is a highly acclaimed low-output moving coil (MC) phono cartridge produced in Japan by Excel Sound Corporation. Sitting in the middle-to-upper tier of Hana’s lineup (the "M Series"), it is widely regarded by audiophiles as one of the best value-to-performance cartridges.

Key Engineering Features

  • MicroLine Stylus Profile: Designed to closely mirror the shape of a vinyl cutting lathe stylus. It sits deeper in the vinyl groove, maximizing detail retrieval while drastically reducing inner-groove distortion.

  • Delrin Body + Brass Cap: The body is injection-molded from Delrin (POM)—a polymer chosen for its acoustic damping properties similar to vinyl. A heavy brass cap adds mass (9.5 g) and constrained-layer damping to eliminate body resonances.
  • Cryogenic Treatment: Key components of the electro-magnetic generator (front yoke, center, and rear parts) undergo cold annealing near absolute zero, restructuring metal at the molecular level for a more linear magnetic field.
  • Threaded Mounting Inserts: Built directly into the body for easier installation onto tonearms (unlike older models that required nuts and bolts).
Specifications
Specification Details
Cartridge Type Low-Output Moving Coil (MC)
Stylus Nude MicroLine
Cantilever Machined Aluminum
Output Voltage 0.4 mV @ 1 kHz
Tracking Force 2.0 grams (recommended)
Cartridge Weight 9.5 grams
Body Material Delrin (POM) with a Machined Brass Top Plate
Coil Wire / Magnets High-purity copper wire, Alnico magnet
Internal Impedance 8 ohms
